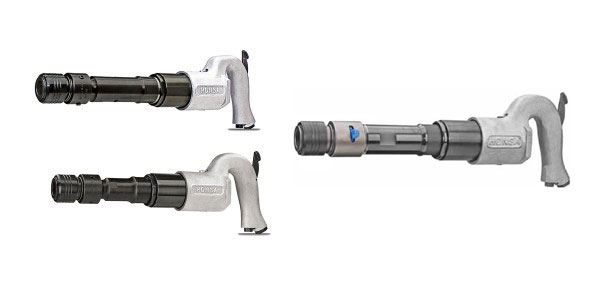

B-17 Gooseneck Assembly Tools

B-17 Gooseneck Assembly Tools

















The HTP B-17 Series Tools are the gentle giants of Honsa® Riveting Tools. They have just enough weight and an abundance of power to ease through demanding applications for sustained periods of time, without the bone crushing vibration you would expect to find in an high-power riveter.

.498 Shank Type

Model# Bore Stroke BPM O.A.L. Weight Std.
Equipment
HTPB-17C 27/32" 6-23/64" 1400 15-3/8" 8 lbs 8oz 8112 & 8111
HTPB-17CR 27/32" 6-23/64" 1400 17" 10lbs 3oz 8113R
HTPB-17D 27/32" 4-23/64" 1400 13-3/4" 8lbs 3oz 8112 & 8111
HTPB-17DR 27/32" 4-23/64" 1400 15-1/2" 9lbs 10oz 8113R
HTPB-17E 27/32" 6-23/64" 1400 17" 10lbs 3oz 8113E

Note: B-17E includes quick change retainer

Standard Equipment
Mech Aid Retainer Inline Bail Included 8111
Beehive Retainer 8112
Turn Ball Bearing Retainer 8113E (For B-17E only)
Turn Ball Bearing Retainer 8113R (For B-17CR and B-17DR only)

Optional Equipment
Suspension Bail HTPR-B17
Non-Turn Ball Bearing Retainer 8113
Regulator HTREG-2
Swivel HTO 1/4" SWIVEL
Barrel Isolator HTSB02-C (For B-17C, B-17CR, and B-17E)
Barrel Isolator HTSB02-D (For B-17D, B-17DR)
Barrel Isolator HTRP-C-B17 (For B-17C, B-17CR, and B-17E) (With Collar)
